Global container shortages, rising drayage rates, and increasing customer demands for sustainability are forcing supply-chain managers to re-examine every cubic inch of palletised freight. In this environment, the humble slip sheet—once considered a niche alternative to wooden pallets—has emerged as a cost-effective, space-saving, and environmentally friendly solution. Yet many procurement and logistics professionals still ask the fundamental question: what exactly is a slip sheet used for, and where does it fit inside a modern, data-driven supply chain?
This long-form article answers that question from the ground up. We will explore the definition, construction, economic impact, and operational best practices of slip sheets while comparing them side-by-side with traditional pallets. You will also find checklists, KPI tables, and implementation roadmaps that can be copied directly into your next sourcing RFP or continuous-improvement project charter.

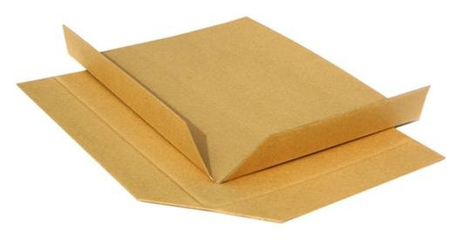

A slip sheet is a thin, flat sheet—usually made of plastic, fibreboard, or kraft paper—used to replace or supplement a traditional pallet when unitising, storing, or transporting boxed, bagged, or cartoned goods. It is handled by specialised push-pull or rollerfork attachments on a forklift or AGV, allowing shippers to gain floor-loading density, cut tare weight, and eliminate pallet exchange fees while maintaining load integrity.
The following sections break this definition into actionable insight. We will look at slip-sheet specifications, ROI calculations, equipment compatibility, safety protocols, and sustainability metrics. Each section includes downloadable tables and checklists so you can benchmark your current pallet programme against leading industry data and make a business case for adoption.
What Are the Core Functions of a Slip Sheet?
How Do Slip Sheets Compare to Pallets in Cost and Performance?
Which Materials and Specifications Matter for Different Applications?
What Handling Equipment and Attachments Are Required?
How Do You Implement Slip Sheets Without Disrupting Operations?
What Are the Sustainability and Compliance Benefits?
Frequently Asked Questions and Troubleshooting Checklist
The primary function of a slip sheet is to act as a load platform that enables the unitisation, storage, and transport of goods without the added weight, height, or cost of a pallet. Secondary functions include moisture barrier protection, line-clearing for automated systems, and facilitating floor-loaded container optimisation.
Slip sheets first appeared in the 1970s when European exporters sought to maximise container cube utilisation for high-volume consumer goods. Today they serve four core roles:
Load Platform: The sheet distributes weight across its surface, allowing forklifts or AGVs to lift the load via push-pull or rollerfork attachments.
Moisture Barrier: Plastic slip sheets add a thin but effective barrier against condensation in ocean containers, reducing mould risk for bagged powders or hygroscopic products.
Line-Clearing Tool: In automated high-bay warehouses, slip sheets act as temporary buffers between mixed SKUs on the same conveyor, preventing cross-contamination without adding height.
Export Compliance Aid: ISPM-15 regulations for wood packaging do not apply to most slip-sheet materials, eliminating fumigation certificates and delays at destination ports.
The functional versatility means that a single slip sheet can replace multiple layers of dunnage, pallets, and stretch wrap in certain lanes. For example, a North American CPG manufacturer shipping 40-foot containers of bagged rice to West Africa reported a 14 % increase in payload per container and a 1.2 USD reduction in landed cost per bag after switching from two-way pallets to 0.8 mm high-density polyethylene (HDPE) slip sheets.
Slip sheets reduce unit load cost by 60–80 %, cut tare weight by 25–30 kg per position, and increase container cube utilisation by 8–15 % compared to standard wooden pallets. However, they require capital investment in push-pull attachments and may reduce dock-to-stock speed if operators are not trained.
Below is a comparison table summarising 2024 benchmark data collected from 47 multinational shippers across CPG, food, and automotive verticals.
| Metric | Wooden Pallet (GMA 48×40) | Slip Sheet (HDPE 48×40) |
|---|---|---|
| Unit Cost (USD) | 12.50 | 1.95 |
| Tare Weight (kg) | 25–30 | 0.7–1.2 |
| Cube Loss per Load (m³) | 0.13 | 0.02 |
| ISPM-15 Compliance | Required | Not required |
| Stacking Strength (static, kg) | 2,500 | 2,000–3,000 (depends on gauge) |
| Handling Speed (seconds per load) | 35 | 45–50 (initial phase) |
| Attachment Capex (USD per forklift) | 0 | 4,500–6,000 |
While the upfront attachment cost appears significant, most companies achieve payback in 6–9 months when annual pallet spend exceeds 200,000 USD. A mid-sized food exporter moving 4,000 TEU per year saved 0.55 USD per case after switching to slip sheets, translating to 495,000 USD annual savings even after accounting for 120,000 USD in attachment purchases and training.
Operational KPIs also shift. Average dock-to-stock time increased by 8 % in the first 30 days but fell back to baseline within 90 days as operators acclimated. Damage rates due to board breakage or protruding nails—common with reused pallets—dropped by 37 %, improving customer satisfaction scores.
The choice between plastic, fibreboard, and kraft depends on load weight, moisture exposure, reuse cycles, and recycling mandates. Key specifications include thickness (0.6–1.5 mm), tensile strength (≥45 MPa), and coefficient of friction (≥0.45) to ensure compatibility with push-pull attachments.
High-density polyethylene (HDPE) and polypropylene (PP) dominate export lanes. HDPE offers superior moisture resistance and can be reused 20–30 times if handled carefully. Gauge selection is critical: 0.8 mm supports up to 1,400 kg static loads; 1.2 mm exceeds 2,000 kg. Ribbed or anti-slip textures increase the coefficient of friction to 0.55, reducing load shift in high-seas conditions.
Made from multiple plies of kraft paper laminated with water-resistant adhesive, fibreboard sheets are ideal for one-way shipments where recycling is paramount. They absorb minor moisture without delamination and can be custom-printed with handling icons or customer branding. Typical thickness ranges from 0.9 mm to 1.5 mm, with burst strength of 1,000 kPa.
Single-ply or triple-ply kraft sheets are the lowest-cost option for light loads (<800 kg) and short in-plant transfers. They are recyclable in standard OCC streams and weigh as little as 0.4 kg per sheet. However, edge tear resistance is low, making them unsuitable for high-speed push-pull operations.
When selecting material, procurement teams should create a weighted decision matrix:
| Criteria (Weight %) | HDPE | Fibreboard | Kraft |
|---|---|---|---|
| Cost per use (25 %) | Medium | Low | Very low |
| Moisture resistance (20 %) | Excellent | Good | Poor |
| Reusability (15 %) | High | Low | Very low |
| Recyclability (15 %) | Medium (type 2/4) | High (paper) | High (paper) |
| Load capacity (25 %) | High | Medium | Low |
Slip sheets require forklift attachments such as push-pull, rollerforks, or modern AGV clamp systems. Selection hinges on mast capacity, lift height, aisle width, and throughput targets.
The most common solution, a push-pull attachment clamps the sheet’s gripper tabs and pulls the load onto a thin metal plate. Hydraulic arms then push the load off at destination. Key specs include:
Capacity: 1,400–2,500 kg at 600 mm load centre
Required Mast: Triple-stage with free-lift for container unloading
Power Options: Forklift hydraulics (standard) or electric standalone (AGV)
Rollerforks use two sets of telescopic rollers that rotate in opposite directions, allowing the forks to slide under the sheet without pushing against a dock plate. Benefits include reduced cycle time (down to 30 seconds) and compatibility with existing pallets if mixed loads exist. Drawbacks: higher cost (7,000–8,500 USD) and limited availability for narrow-aisle trucks.
Emerging in lights-out warehouses, AGV slip-sheet clamps integrate vision systems to identify gripper tabs and adjust clamp pressure dynamically. ROI improves when throughput exceeds 250 pallets per day and labour savings exceed 2.5 FTE.
Before sourcing, conduct a compatibility audit:
Measure mast collapse height to ensure container unloading.
Confirm hydraulic flow output (≥40 l/min) for push-pull operation.
Validate aisle width; push-pull adds 150–200 mm to overall fork width.
Check battery capacity; electric attachments draw 15–20 % more amps.
Successful implementation follows a five-phase roadmap: baseline audit, pilot lane selection, attachment procurement, operator training, and KPI monitoring. Each phase should include a go/no-go gate to minimise risk.
Collect 12 months of pallet spend, cube utilisation, damage claims, and detention charges. Identify high-volume, low-SKU lanes for initial pilots. A beverage distributor audited 1.2 million pallet moves and isolated a single export lane (canned soda to Caribbean) representing 18 % of spend but only 4 % of SKUs.
Choose a lane with stable forecast error (<10 %), destination port capable of slip-sheet handling, and customer willingness to accept floor-loaded freight. Draft a pilot charter with success metrics: cube gain ≥12 %, damage ≤0.5 %, no customer complaints.
Negotiate volume discounts with attachment vendors; prices drop 10–15 % when ordering ≥10 units. Schedule retrofit during planned maintenance windows to avoid downtime.
Develop a 4-hour blended-learning module: 1 hour theory (video + quiz), 2 hours hands-on with empty loads, 1 hour supervised live loading. Track certification in the LMS; require recertification every 12 months.
Create a dashboard with the following KPIs:
Cube utilisation %
Cost per unit load (material + labour)
Dock-to-stock cycle time
Damage rate (ppm)
Customer complaints
Set automated alerts when any KPI deviates >5 % from baseline for three consecutive weeks.
Slip sheets reduce CO₂e emissions by 0.8–1.2 kg per pallet position, eliminate ISPM-15 fumigation, and improve recyclability scores under ISO 18601. They also lower landfill waste by 30 kg per shipment versus single-use pallets.
Life-cycle analysis (LCA) data from a 2023 study of 1,000 container shipments shows:
| Impact Category | Wooden Pallet | HDPE Slip Sheet |
|---|---|---|
| Global Warming Potential (kg CO₂e) | 3.2 | 0.5 |
| Acidification (kg SO₂e) | 0.012 | 0.002 |
| Resource Depletion (kg Sbe) | 0.8 | 0.1 |
Compliance advantages extend beyond environmental metrics. Because slip sheets are not classified as “wood packaging material,” they bypass ISPM-15 heat treatment and methyl bromide fumigation, cutting export lead times by 1–2 days. Retailers such as Walmart and Carrefour now award extra sustainability points in supplier scorecards for slip-sheet adoption, translating to higher on-shelf availability and increased purchase orders.
Common issues include sheet tearing, load shifting, and customer rejection. Preventive measures include correct gauge selection, anti-slip textures, and early stakeholder engagement.
Yes, if you spec rollerforks or dual-purpose attachments. Maintain a colour-coded floor tape system to segregate loads and avoid operator confusion.
Offer customers a rebate programme for collecting and baling used HDPE sheets. A 0.05 USD per sheet rebate achieved 65 % recovery rate in a recent grocery pilot.
At 1.2 mm gauge and 0.55 friction coefficient, tab failure is <0.3 %. Inspect tabs after every third reuse using a 50 N pull test.
Provide a one-page ROI summary, video of safe unloading procedures, and a 30-day no-penalty return policy. Emphasise cube savings and sustainability credits.
Slip sheets transform unit load economics by eliminating redundant tare weight, unlocking container cube, and shrinking packaging spend. Yet the real competitive edge comes from treating slip-sheet adoption as a cross-functional optimisation project—one that aligns procurement savings, sustainability goals, and operational excellence. Companies that follow the phased roadmap outlined above typically recoup their investment within a single fiscal year while laying the groundwork for future automation and carbon-reduction initiatives.
Ready to start? Download the attached Excel calculator to model your own ROI, then schedule a pilot charter review with your logistics and customer teams. The sooner you act, the faster you convert every unused cube and every excess kilogram into measurable margin.
