1300 x 1000 x 1.2 mm
TP-PACK

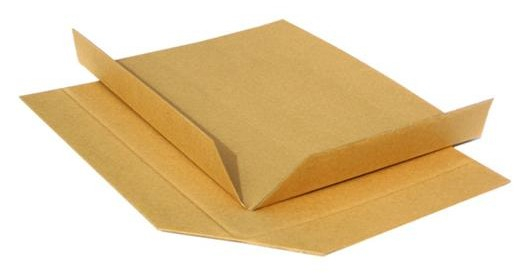

Kraft Slip Sheet
---Size: 1300 x 1000 x 1.2 mm
---Base dimensions: 1220 x 1020 mm.
---Tab width: 80 mm
---Thickness: 0.8 mm
---2 tabs adjacent (450 oblique corner cut)
---2 score lines
---Made of kraft sheets laminated with glue, brown
Product specification:
Dimension tolerance | Tensile strength | Durability of tab | Carrying capacity |
Length/ width: +/- 7 mm | >= 20 KN/ M | >=15 times 900 bending | 1000 Kg |
Advantages
---Using slip sheets instead of wooden pallets allows for 12-15% more products in material handling containers.
---Slip sheets do not require maintenance, but can easily be replaced.
---Significant reduction in material handling costs.
---Decreases loading/unloading time by up to 60%
---Weighs 1/20 as much as wooden pallets, reducing shipping costs.
---Can be customized to fit any size load.
---Eliminates the need for pallet exchange.
---Reliable and reusable.
---Recyclable.
---Cost-effective.
---Unlike wooden pallets slip sheets are not subject to phytosanitary restrictions.
---Good quality at competitive price, with less lead time, as are made in our specializing factory.
---OK for ROHS and REACH tests.
Customization
---sizes can be customized for different capacities. Other offering we usually do
1.0 mm thick, with capacity of 800 kg;
0.8 mm thick, with capacity of 600 kg.

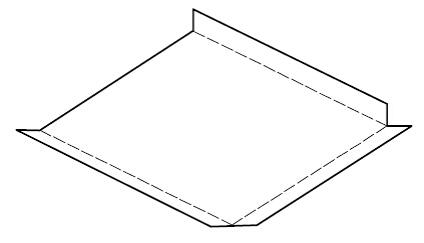

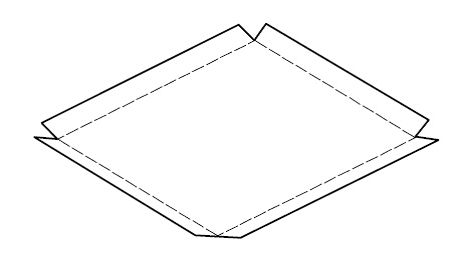

---Other types for choice

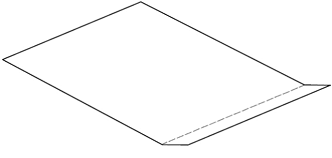

Type 1: one-tab slip sheet

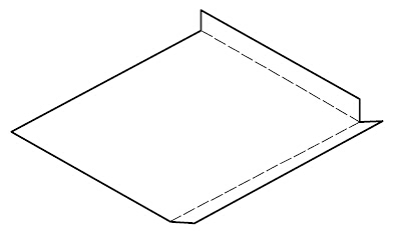

Type 2A: two-tab slip sheet-Adjacent

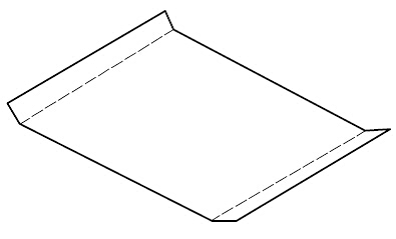

Type 2B: two-tab slip sheet-Opposite
Type 3: three-tab slip sheet
Type 4: four-tab slip sheet

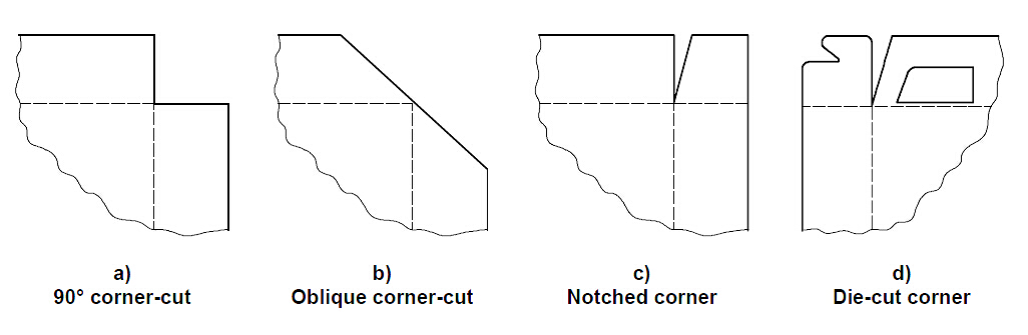

--- Corner profiles of tab to be made on agreement
- - - - The broken lines shown indicate score lines.
---Imprinting available on agreement
---Water resistant PE coating added on agreement.
MOQ: 800 pcs (a pallet) with gross weight of 1100 kg around.
Price: 1.08 USD/ pc, 864 USD/ 1000 pcs (a pallet) in FOB term. Discount available for large quantities, say 20ft container or 40ft container.
Other terms such as FCA, CIF, DDP etc. acceptable on agreement.
Kraft Slip Sheet
---Size: 1300 x 1000 x 1.2 mm
---Base dimensions: 1220 x 1020 mm.
---Tab width: 80 mm
---Thickness: 0.8 mm
---2 tabs adjacent (450 oblique corner cut)
---2 score lines
---Made of kraft sheets laminated with glue, brown
Product specification:
Dimension tolerance | Tensile strength | Durability of tab | Carrying capacity |
Length/ width: +/- 7 mm | >= 20 KN/ M | >=15 times 900 bending | 1000 Kg |
Advantages
---Using slip sheets instead of wooden pallets allows for 12-15% more products in material handling containers.
---Slip sheets do not require maintenance, but can easily be replaced.
---Significant reduction in material handling costs.
---Decreases loading/unloading time by up to 60%
---Weighs 1/20 as much as wooden pallets, reducing shipping costs.
---Can be customized to fit any size load.
---Eliminates the need for pallet exchange.
---Reliable and reusable.
---Recyclable.
---Cost-effective.
---Unlike wooden pallets slip sheets are not subject to phytosanitary restrictions.
---Good quality at competitive price, with less lead time, as are made in our specializing factory.
---OK for ROHS and REACH tests.
Customization
---sizes can be customized for different capacities. Other offering we usually do
1.0 mm thick, with capacity of 800 kg;
0.8 mm thick, with capacity of 600 kg.
---Other types for choice
Type 1: one-tab slip sheet Type 2A: two-tab slip sheet-Adjacent Type 2B: two-tab slip sheet-Opposite Type 3: three-tab slip sheet Type 4: four-tab slip sheet
--- Corner profiles of tab to be made on agreement
- - - - The broken lines shown indicate score lines.
---Imprinting available on agreement
---Water resistant PE coating added on agreement.
MOQ: 800 pcs (a pallet) with gross weight of 1100 kg around.
Price: 1.08 USD/ pc, 864 USD/ 1000 pcs (a pallet) in FOB term. Discount available for large quantities, say 20ft container or 40ft container.
Other terms such as FCA, CIF, DDP etc. acceptable on agreement.
