60x60x5x1000 mm
TP-PACK

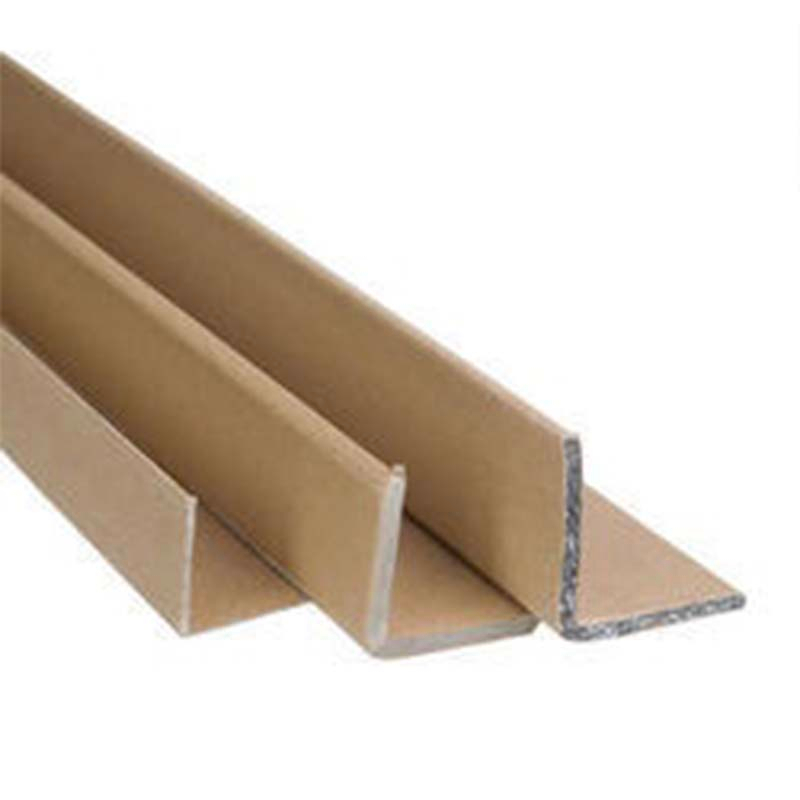

It is L-shaped cardboard with equal width 60mm and thickness 5mm. The length is 1000 mm. It can be made as long as from 50mm to 6000 mm customer defines. It is used, together with stretch film or/ and plastic strapping, to protect edges, corners of products, cartons and pallets.
A: width 1; B: width 2; C: thickness; D: length
Specification
Size | Color | Weight/ m | Vertical compression strength | Bending strength | Dimension tolerance | Humidity |
60x60x5x1000 mm | Brown | 417 g/ m | 2600 N | 1220 N | width +/- 2mm, thickness+/- 0.2mm, length +/- 2mm | 12 +/- 2% |
---RoHS test is OK.
---The dimensions can be changed by the client.
---The color can be changed to white or any color you like.
---Imprinting inside or outside available on agreement: client company name and logo etc.
---Packaging: strapped in bundles which are packed in cartons or on pallets. Can be packed in cartons for short lengths on agreement.
Application:
 |  |  |
Key Features & Benefits
-Reduction in Product Damage：less chance of products being crushed during shipping and storage.
-Increased Load Stability：maximum strapping tension can be used without crushing products.
-Improved Shipping & Handling：allows more products to be placed on pallets, reducing handling costs and increasing warehouse and shipping space.
-Increased Profits ：reduced products damage means less rejection of product by customers.
-Can be used with nails, staples and screws.
-Sturdy and reusable.
-Eco-friendly, disposable and100% recyclable.
MOQ: 1650 pcs
Price: 0.22 USD/ pc in FOB Shenzhen or Guangzhou term.
EXW., FCA, CIF, DDU and DDP also acceptable on agreement.
Discount available for large quantities, say a 20ft container or 40ft container.
Customization: the size (width, thickness and length) can be changed as per customer requirements, with width ranging from 25 mm to 100 mm, thickness ranging from 2.5 mm to 10 mm, length ranging from 50 mm to 6000 mm. Skin color can be changed to white or other colors. Imprinting of images, logos or messages can be done on agreement.
A foldable cardboard edge protector is a reinforced paper-based guard designed to protect pallet corners and edges during storage and transportation. It folds easily for compact packaging and improved logistics efficiency.
Our foldable edge protectors can be customized to match Euro pallets, industrial pallets, and oversized pallets. Custom lengths and thicknesses are available according to your load requirements.
Yes. We support full customization, including length, width, thickness, color, and printed branding or handling instructions.
Yes. Made from high-strength recycled kraft paper, our edge protectors provide excellent compression resistance and help stabilize stacked goods.
Our MOQ varies depending on size and customized specifications. Please contact us for a quote and samples.
Yes, samples are available for quality checking before bulk order.
They are widely used in logistics, warehousing, furniture, electronics, chemical goods, and heavy-duty industrial packaging.
